Low Frequency Signal Generator, TAG-101 High Precision Function Signal Generator, 10Hz-1MHz Function Generator with Sine & Square Wave Output, 6-Step Attenuator

SpecificationsModel: TAG-101Material: Metal, PlasticColor: WhiteShape: RectangularStyle: ModernPower Source: Corded ElectricPlug Standard: US StandardPower Supply: AC 110V (50/60 Hz), 8WFrequency Range: 10 Hz~1 MHzNumber of Measurement Ranges: 5Accuracy: ±5% of Full ScaleOutput Impedance: 600ΩOutput Control: 0dB, -10dB, -20dB, -30dB, -40dB, -50dB (Fine-tunable)Sine Wave OutputOutput Voltage: 5~6V RMSDistortion: 500 Hz~50 kHz ≤ 0.05% 50 Hz~500 kHz ≤ 0.5%Output Smoothness: ±1.5 dB for 1 ReferenceSquare Wave OutputRange: 10 Hz~1 MHZOutput Level: 10 V PeakRise Time: 0.5 μsSynchronization PerformanceRange: Each 1V Output Voltage Can Change The Oscillation Frequency by 1%Input Impedance: 10 KΩGross Weight: 2.9kg/6.4lbsNet Weight: 2kg/4.4lbsPower Cord Length: 1.2m/4ftProduct Size: 23.5*14*19.5cm/9.25*5.5*7.68inPackage Size: 32*30*21cm/12.6*11.8*8.3inPackage Included1* Low-frequency Signal Generator1* Power Cord1* BNC Output Cable1* English ManualNotes1.Please read the manual completely before installation and use, and pay particular attention to the safety instructions included.2.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before you order.

• 【Wide 10Hz to 1MHz Frequency Range】 Covers a broad low-frequency spectrum across 5 selectable measurement ranges, offering flexibility for educational, research, and electronic testing applications requiring precise signal generation.
• 【Dual Sine & Square Wave Output】 Capable of generating both sine waves and square waves simultaneously. Provides a sine wave output with low distortion and a square wave output with a 0.5µs rise time, suitable for a variety of circuit testing and development tasks.

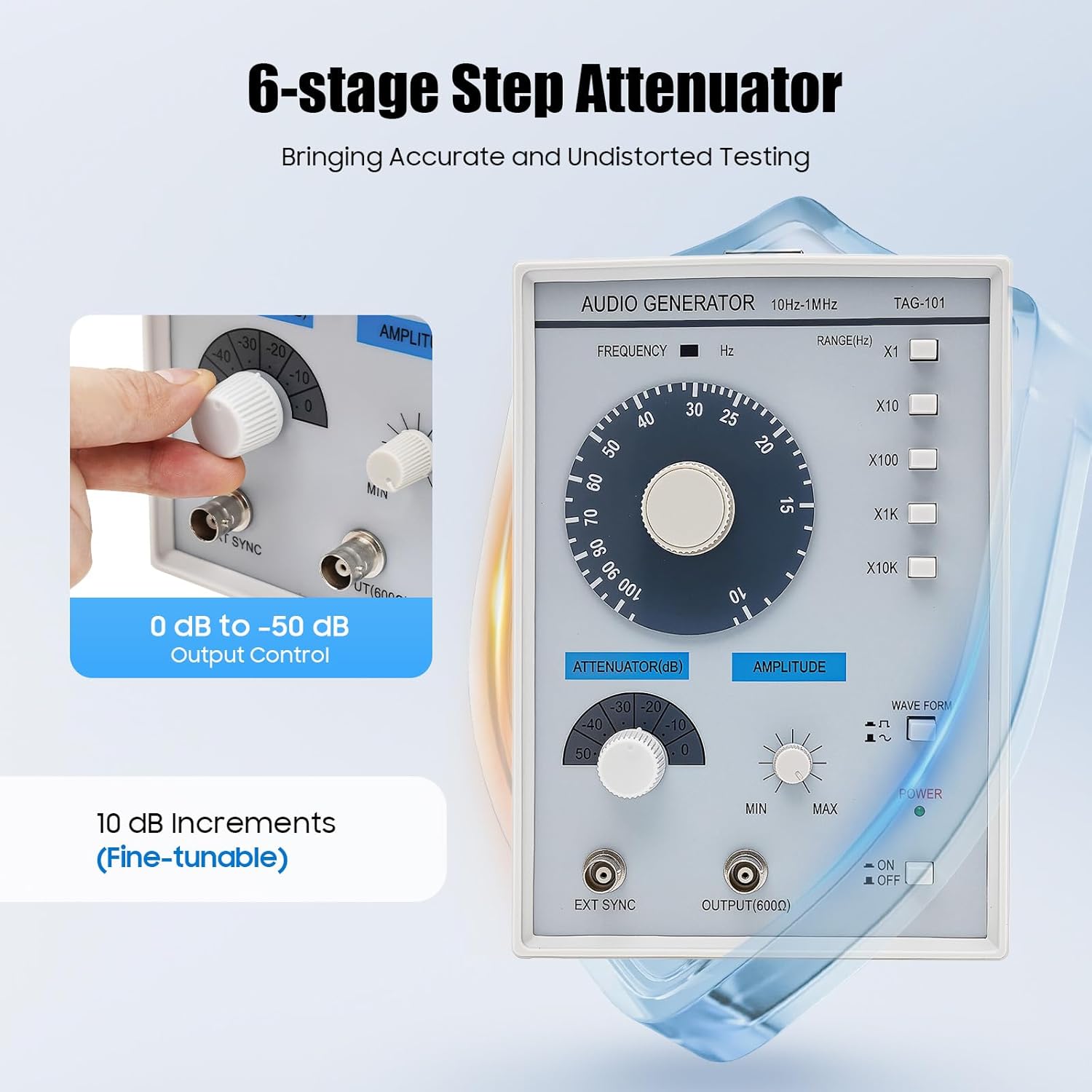

• 【Precise 6-Step Output Attenuator】 Features a 6-step output level control from 0 dB to -50 dB in 10 dB increments, with fine-tuning capability. Allows accurate reduction of signal power without significant waveform distortion for detailed testing.
• 【High Stability & Accuracy】 Built with a reliable circuit system ensuring high frequency stability and an accuracy of ±5% of full scale. Ideal for applications demanding precise and repeatable waveform generation in laboratories and production environments.
• 【Compact Bench-Top Design】 Features a compact, lightweight metal and plastic housing (9.25" x 5.5" x 7.68") with a convenient carry handle. Includes a 4-foot power cord (US plug), a BNC output cable, and clear indicator lights for easy operation and setup.
